Getting started with Hypar for Revit
Hypar for Revit is a Revit addin that allows you to connect your Revit models to your Hypar workflows in two ways. If you want live visualization of your hypar workflow as context inside your Revit model you can use the Hypar Hub, to stream the data from your workflow directly into the Revit view. If you would like to integrate Hypar into your design work, you can extract Revit models into Hypar json files, use that json model as part of your Hypar workflow, and then use custom converters to bring your results back into Revit. See below for more information on these two paths.
Installation

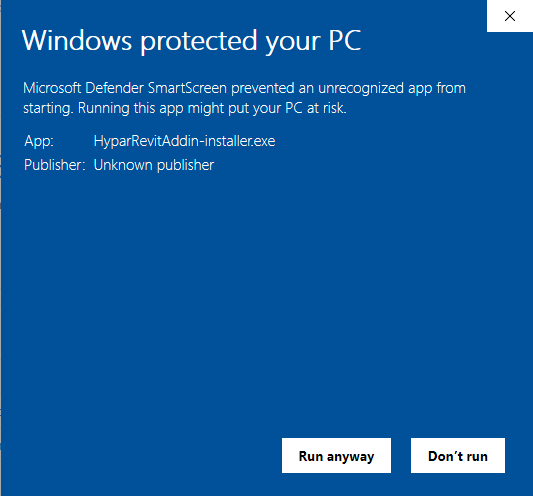

- Download and install the latest Revit plugin installer from releases page. You may get an error from Windows Defender, please click More info and choose Run anyway. We recognize this issue and are working to fix it.

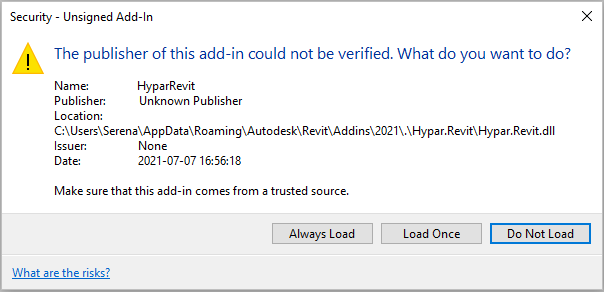

- The first time you install Revit, you may need to unblock the add-in on this screen by choosing Always Load.
Now what?
Congratulations, you have installed Hypar for Revit successfully! 🙌 Here are some things you may want to do with Revit.
Interop: everyone's favorite thing
If you would like to bring Revit data into Hypar or "bake" Hypar results back to Revit, you will need to use converters.
- There are several converters that installed with the Revit add-in above. To use these converters, follow this article:
