• We’re here to help with C# - Basic familiarity with the C# programming language will help, but if you're not familiar with C# we'll do our best to walk you through making changes to the initial code you'll get by following the steps in this guide.

• Know the basics - It's helpful to review the short conceptual overview of Hypar Elements, Functions, and Workflows before beginning this tutorial.

• Hypar is no strings attached - None of the Hypar libraries you'll use in this guide bind your code to Hypar web services. For example, if you'd like to use the Elements library for a desktop application, it's an open source project on GitHub and will always be free for anyone to use or extend. You don't even have to tell us you're using it.

• Sign in to Hypar. Scroll down to Your Functions. Click New Function then New C# Function.

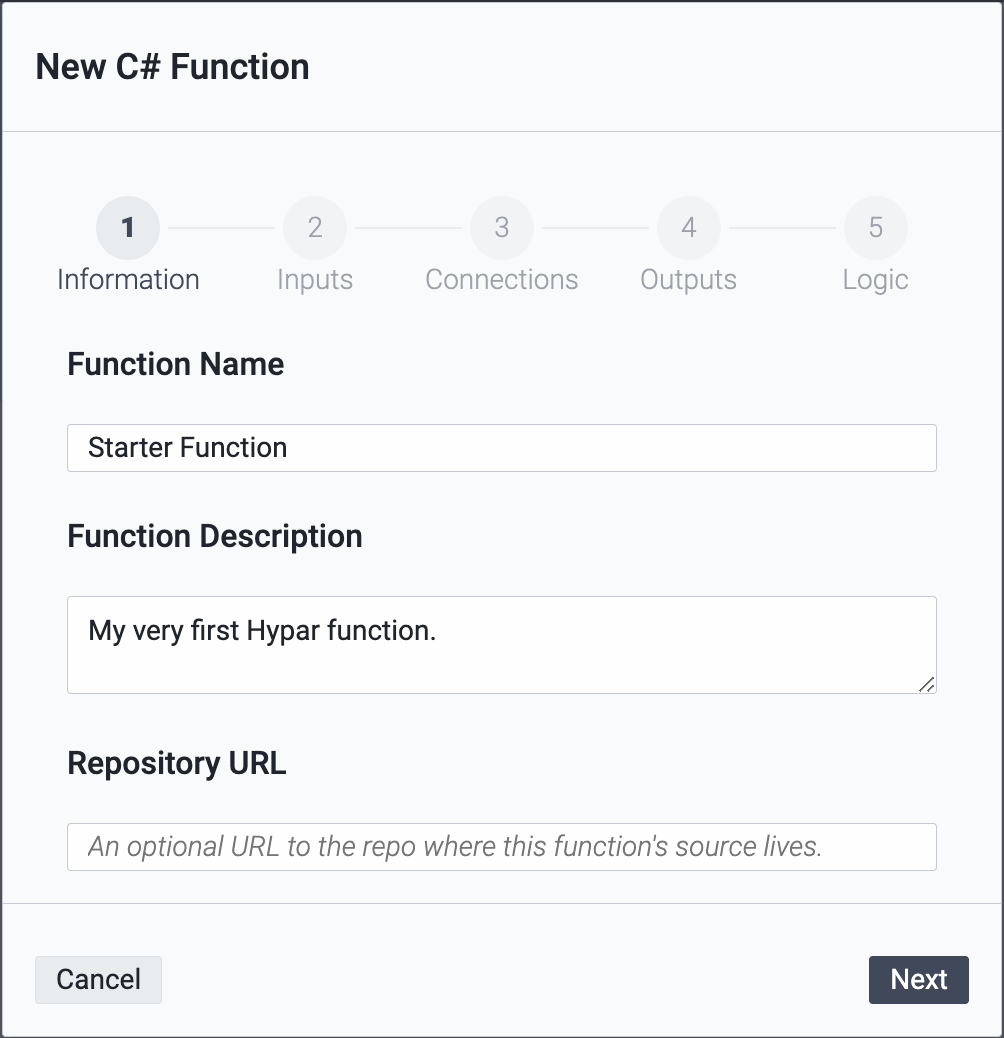

• Now you can start srtting up your function through the Hypar interface. For consistency, give your function the name Starter Function and a description (if you’d like!). Click Next.

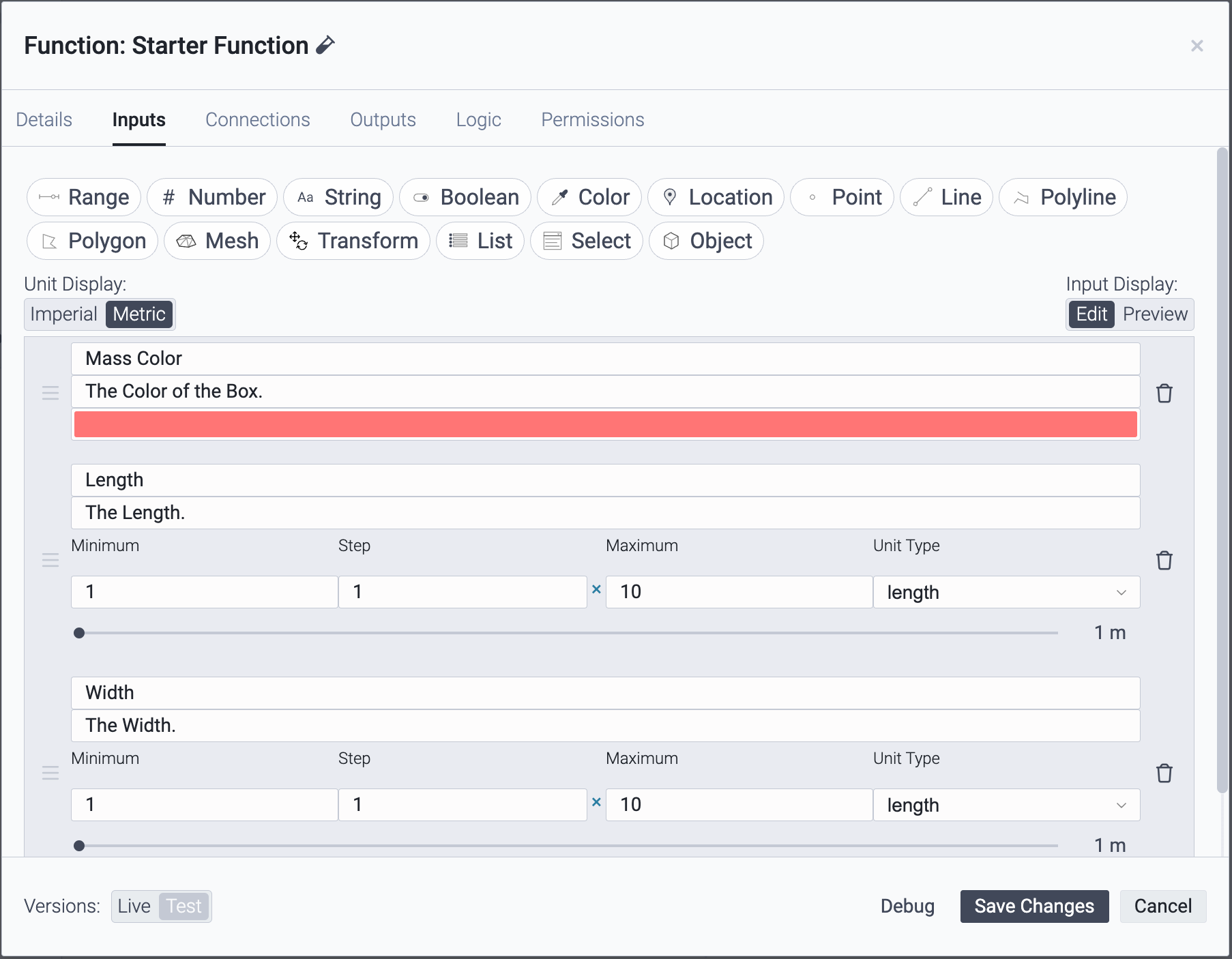

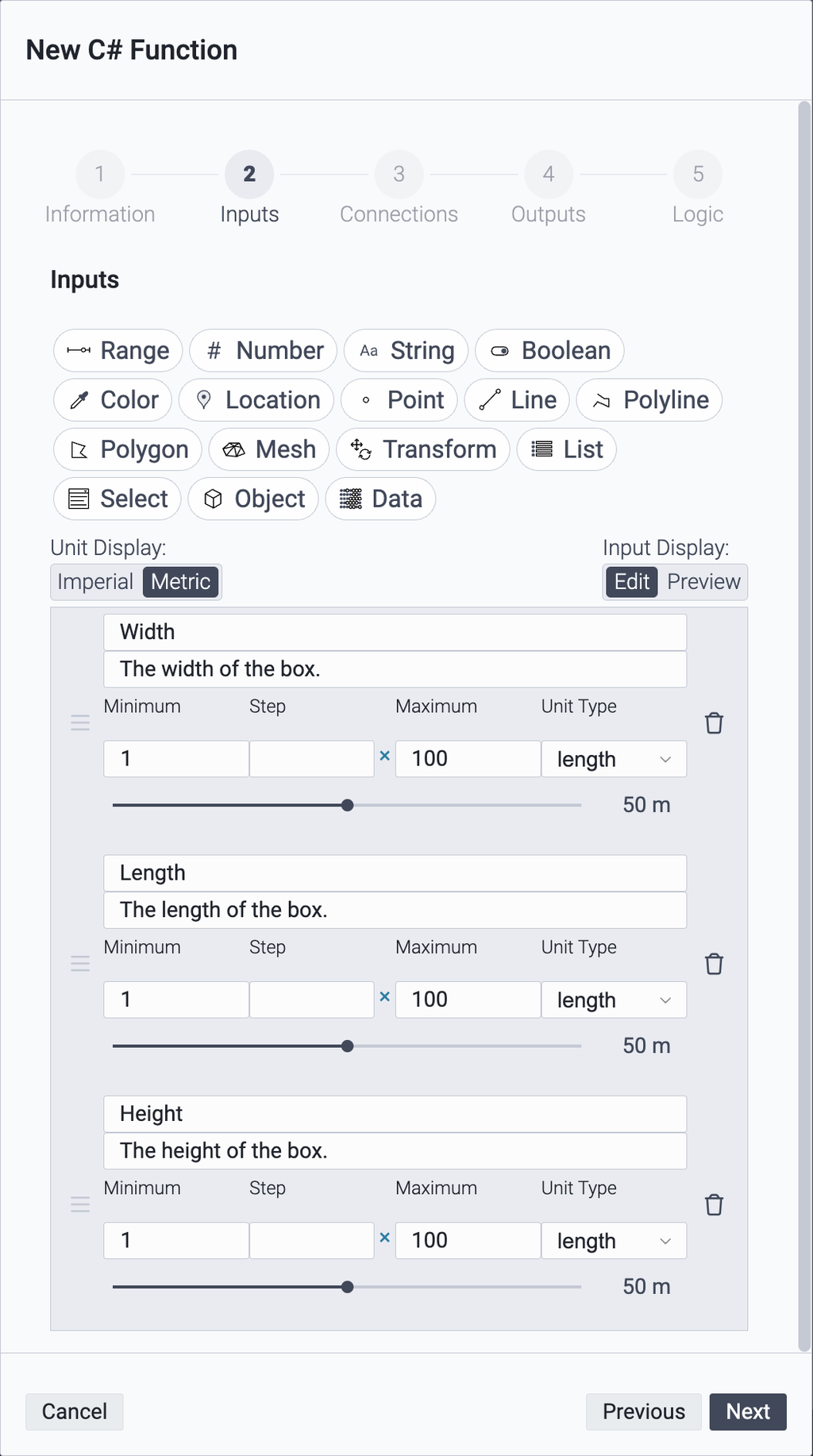

• Click or drag three Range inputs and name them Width, Length, and Height, and set their minimum values to 1:

• You can also select "Preview" to visualize how the inputs will look in the function.

• Note: We’ll save the Connections section for another tutorial.

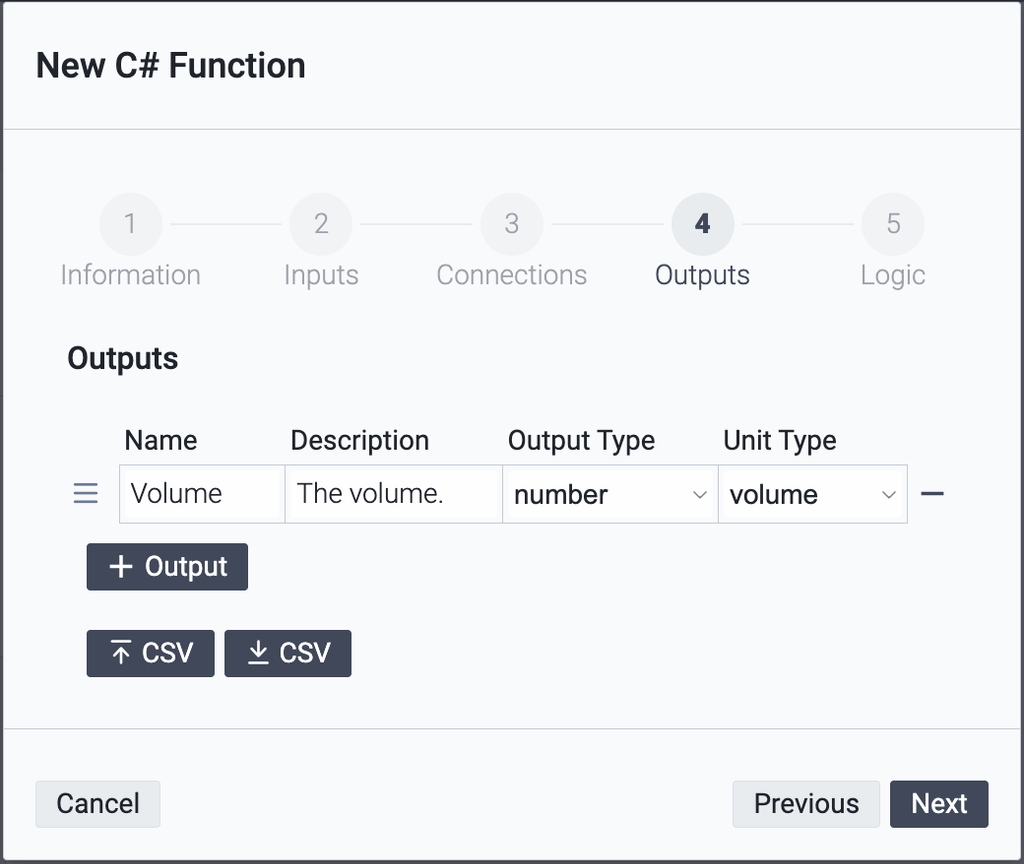

• Click Next again so that 4: Outputs is highlighted at the top. Click + Output to add a new output to report the box’s volume, and configure it like the image below:

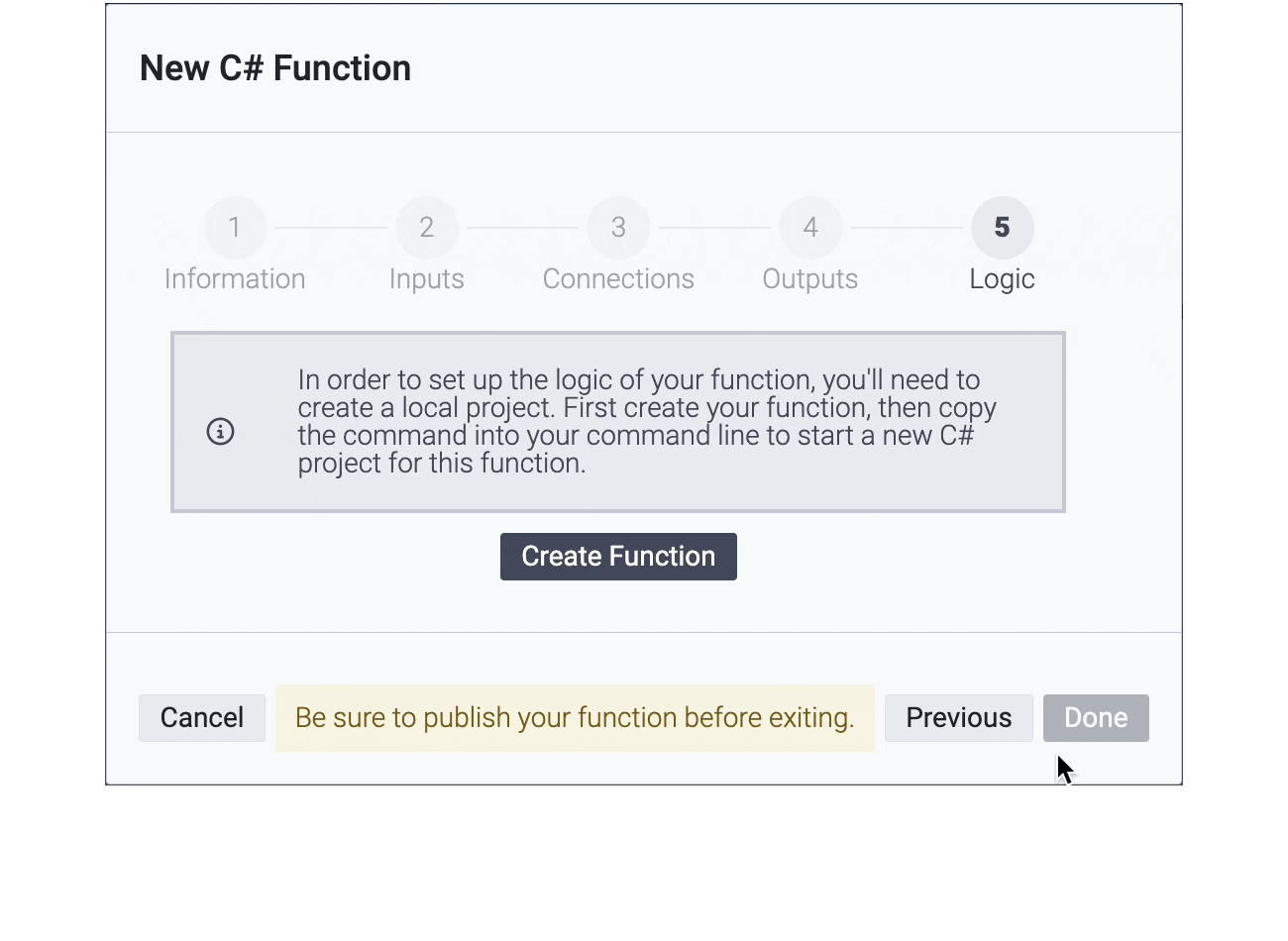

• Move on to the final step, Logic. Click Create Function, and then click the copy icon to copy the terminal command.

• Your Function has now been privately published to Hypar!

• Next, we'll write some code to define the logic for the Function.

• Return to your command prompt. Decide where you want Hypar to save the code for your Function on your computer, and use the cd command to set that location as the current working directory:

bash
cd C:/users/yourUserName/repos

• Then paste the command you copied from the Hypar web interface, and run it using the Hypar CLI:

plain text
hypar new --function-id={YOUR_FUNCTION_ID]

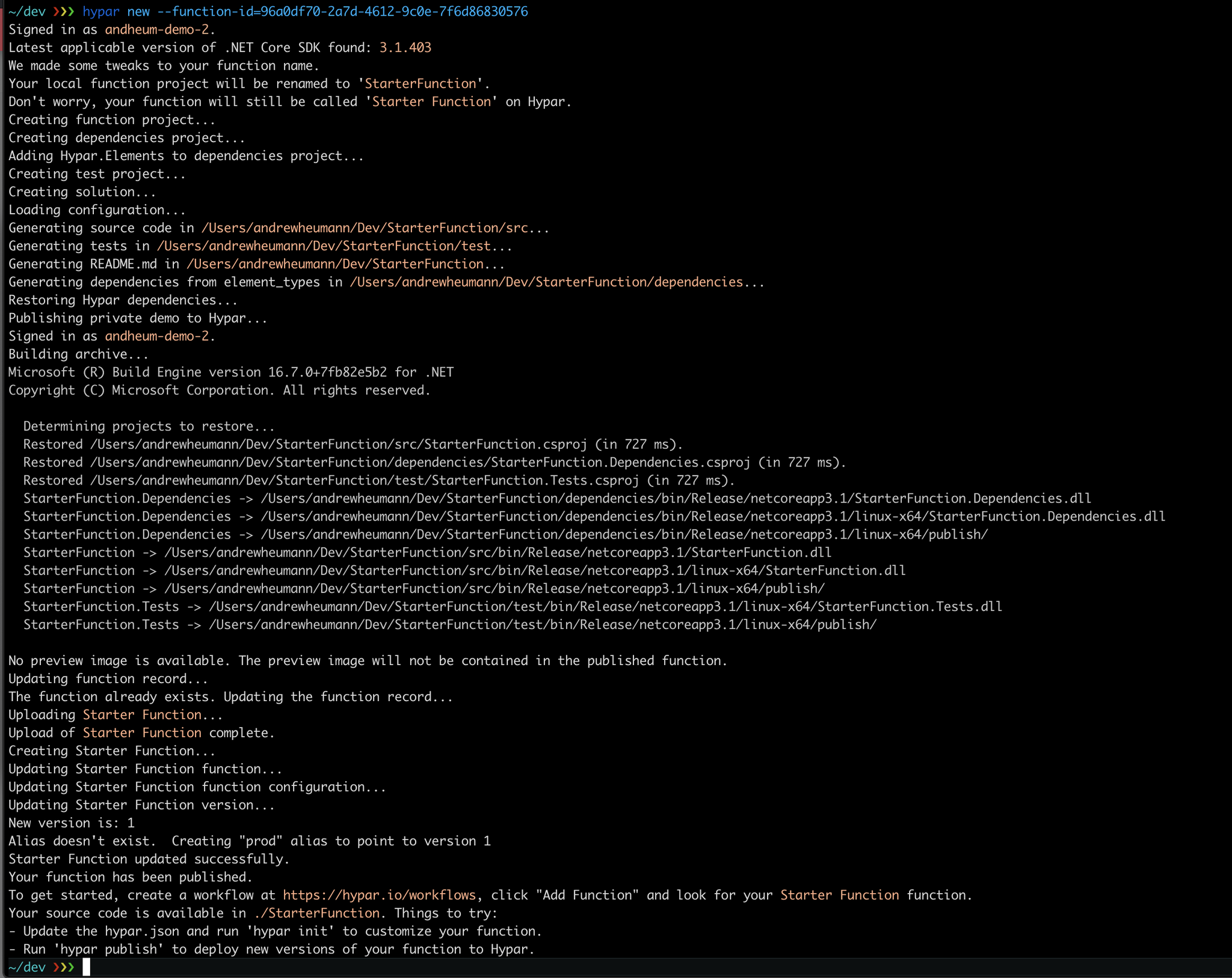

• A bunch of messages will go by as Hypar sets up your local project.

• Next, open VS Code and open the project folder we just created. It should be in the location you picked earlier, with the folder name "StarterFunction."

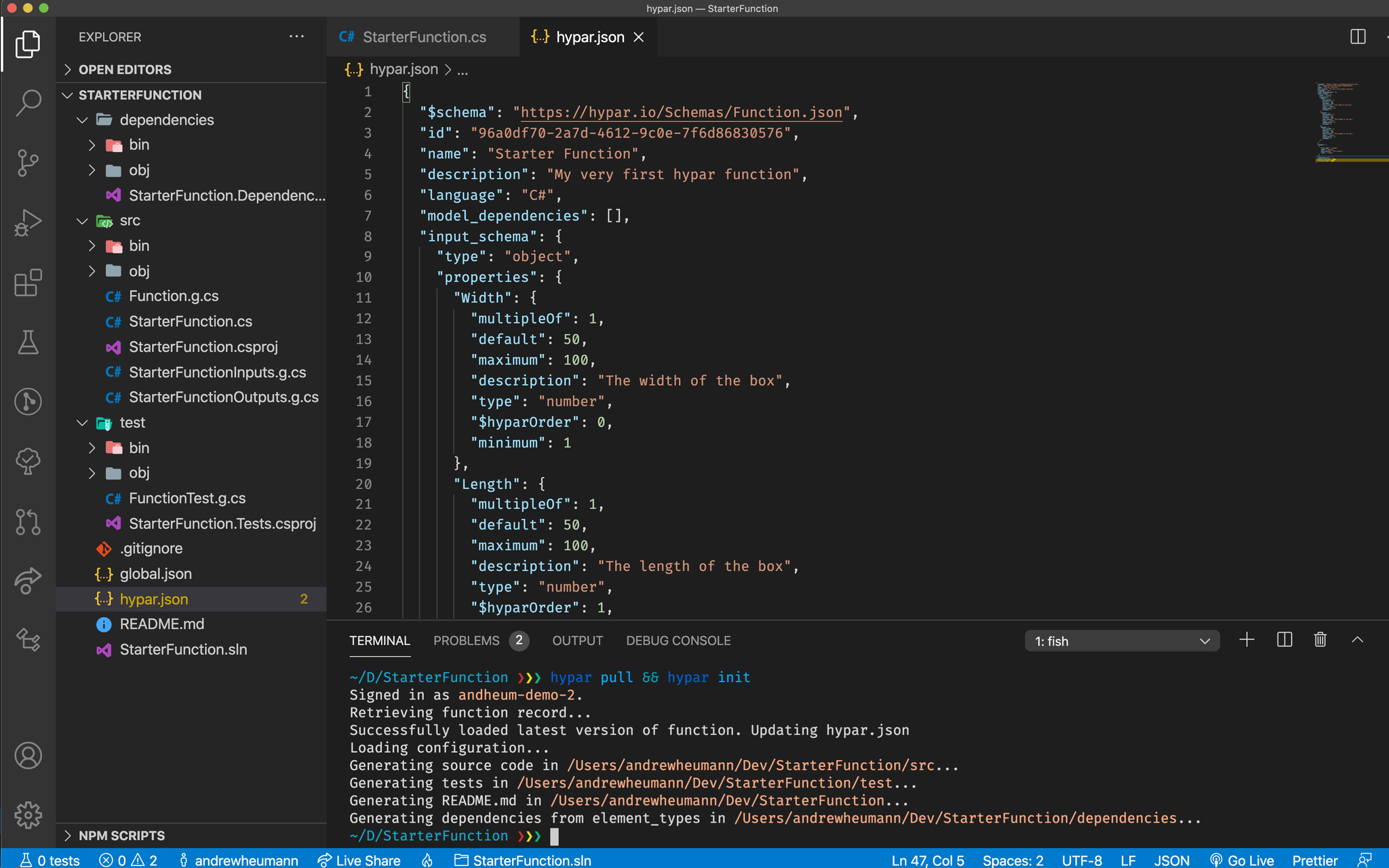

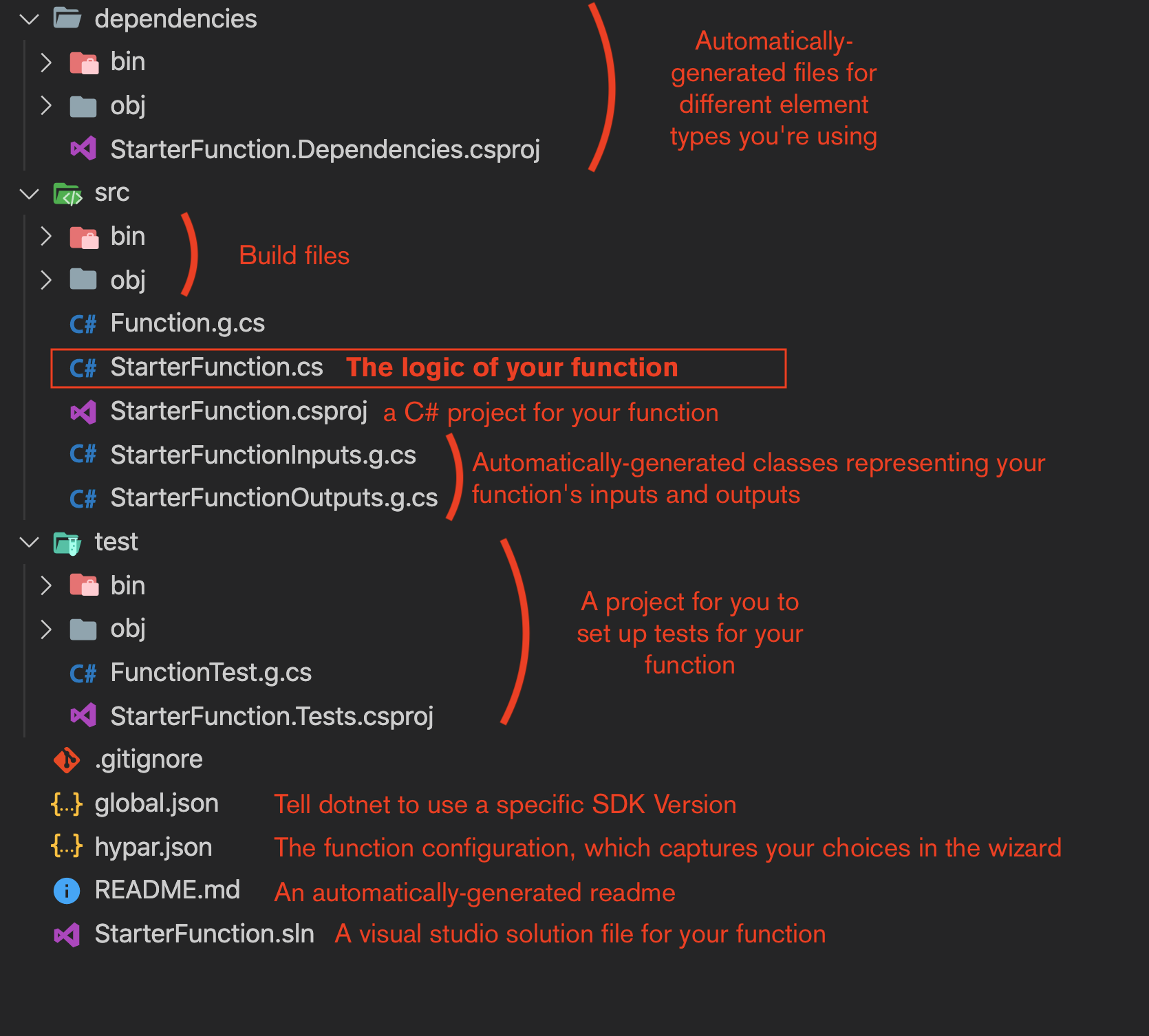

• The Hypar CLI just created a bunch of files for you. Here's what that looks like in VS Code:

• It may seem like a lot, but the good news is you rarely have to edit most of these files — Hypar takes care of all of that for you. Any file you see that ends with .g.cs is not meant to be edited by you.

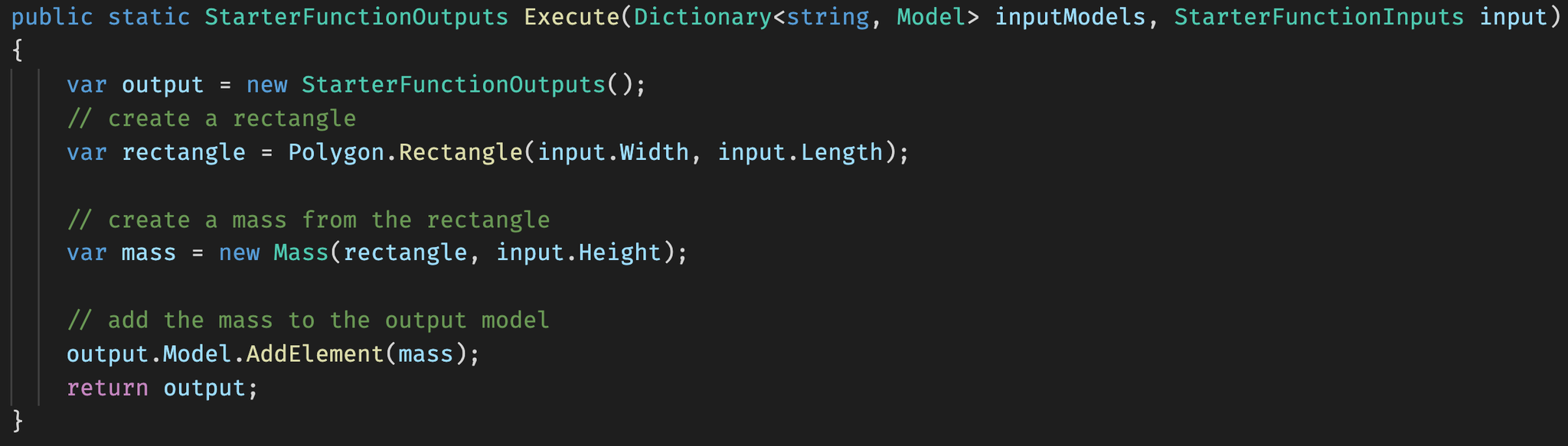

Open the StarterFunction.cs in the /src directory (this contains the logic for your function.)
The Execute method is the entry point into our function; Upon Function creation it creates an "Outputs" object, and returns it.

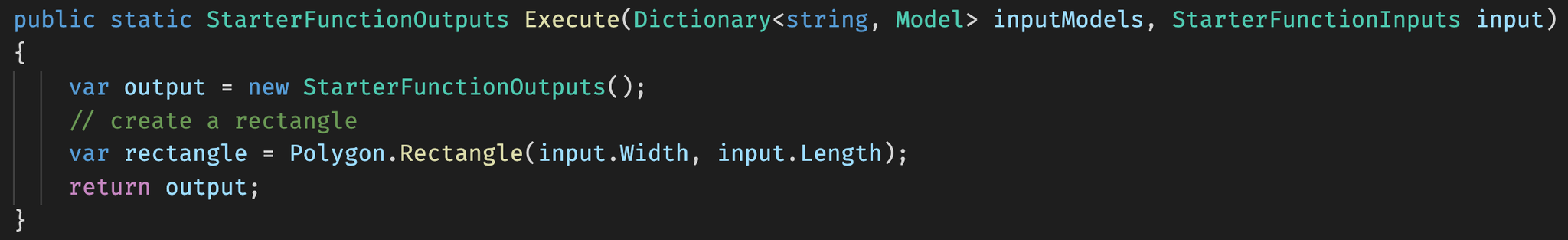

Note that the method has a few arguments. The one called input contains the inputs we defined earlier, Width, Length, and Height. Let's use some of those inputs to create a rectangle. Add this line to your function, in between the two existing lines of the method:

c#
var rectangle = Polygon.Rectangle(input.Width, input.Length);

• Next we'll make a Mass Element to pass to the Hypar 3D environment.

• Note: If you want something to show up in the 3D view, it has to be an Element of some kind.

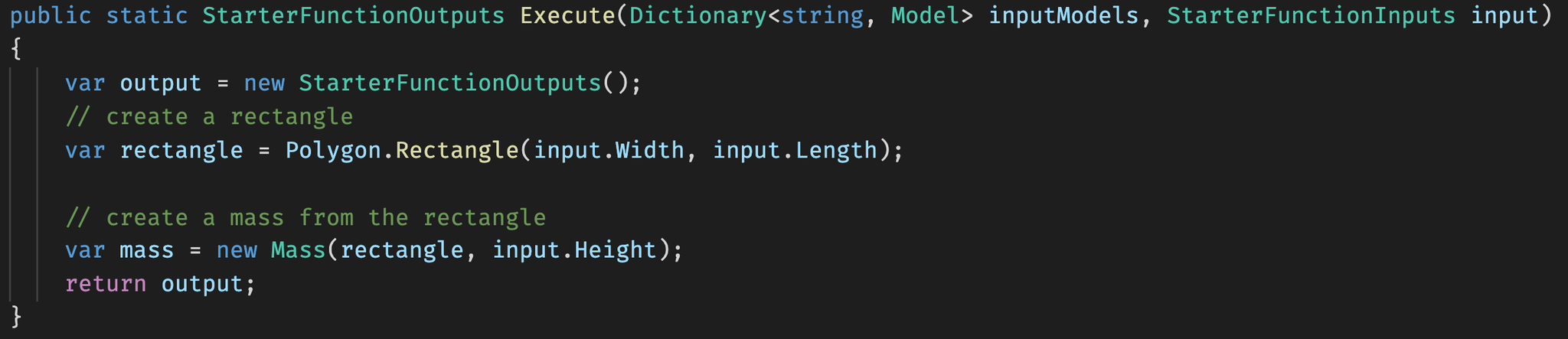

• Add this line after the rectangle:

c#
var mass = new Mass(rectangle, input.Height);

• We also have to put the mass we created in the output model, like so:

c#
output.Model.AddElement(mass);

• Finally, we created an output called Volume to report the box's volume. These data outputs are provided to the constructor for the Outputs object — so let's edit the first line of our method to look like this:

c#
var output = new StarterFunctionOutputs(input.Width * input.Length * input.Height);

• The Execute method within your function should look something like this:

c#
public static StarterFunctionOutputs Execute(Dictionary<string, Model> inputModels, StarterFunctionInputs input)
{
	// create an outputs object and populate any output values
	var output = new StarterFunctionOutputs(input.Width * input.Length * input.Height);
	// create a rectangle
	var rectangle = Polygon.Rectangle(input.Width, input.Length);

	// create a mass from the rectangle
	var mass = new Mass(rectangle, input.Height);

	// add the mass to the output model
	output.Model.AddElement(mass);
	return output;
}

Be sure to save the file!
View the full Function code on Github.

• To publish our changes to the web, open up your command prompt again (or open VS Code's integrated terminal).

• Make sure your working directory is the one Hypar created for you — you might need to cd StarterFunction first.

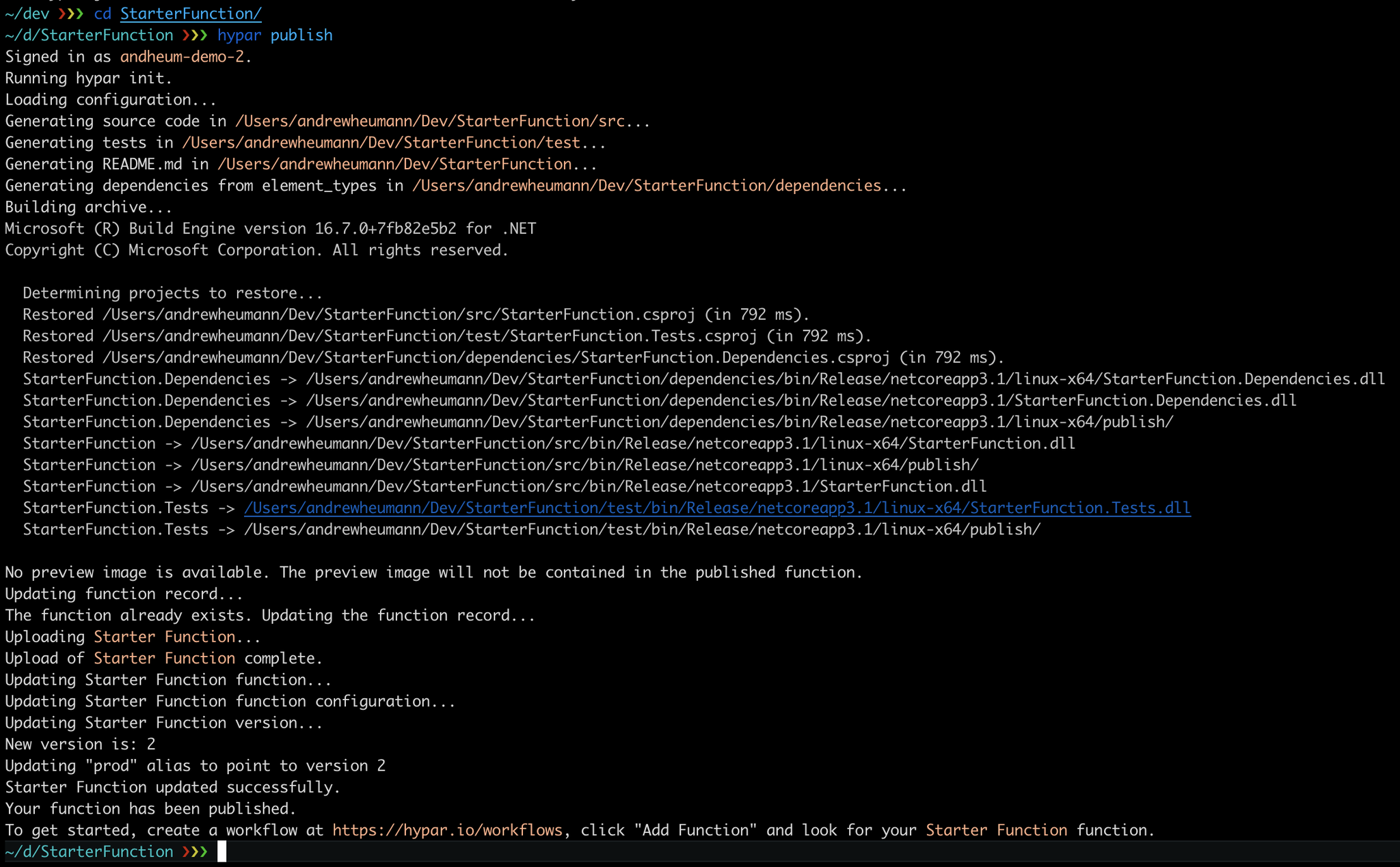

• Then publish your function logic using the publish command like this:

bash
hypar publish

💡
Note: No one at Hypar can see your source code — Hypar only receives the compiled binary file. The only way we can access your code is if you send it to us directly.

• Your Function logic has now been added to your Function on Hypar. Return to hypar.io and sign in so we can test it out!

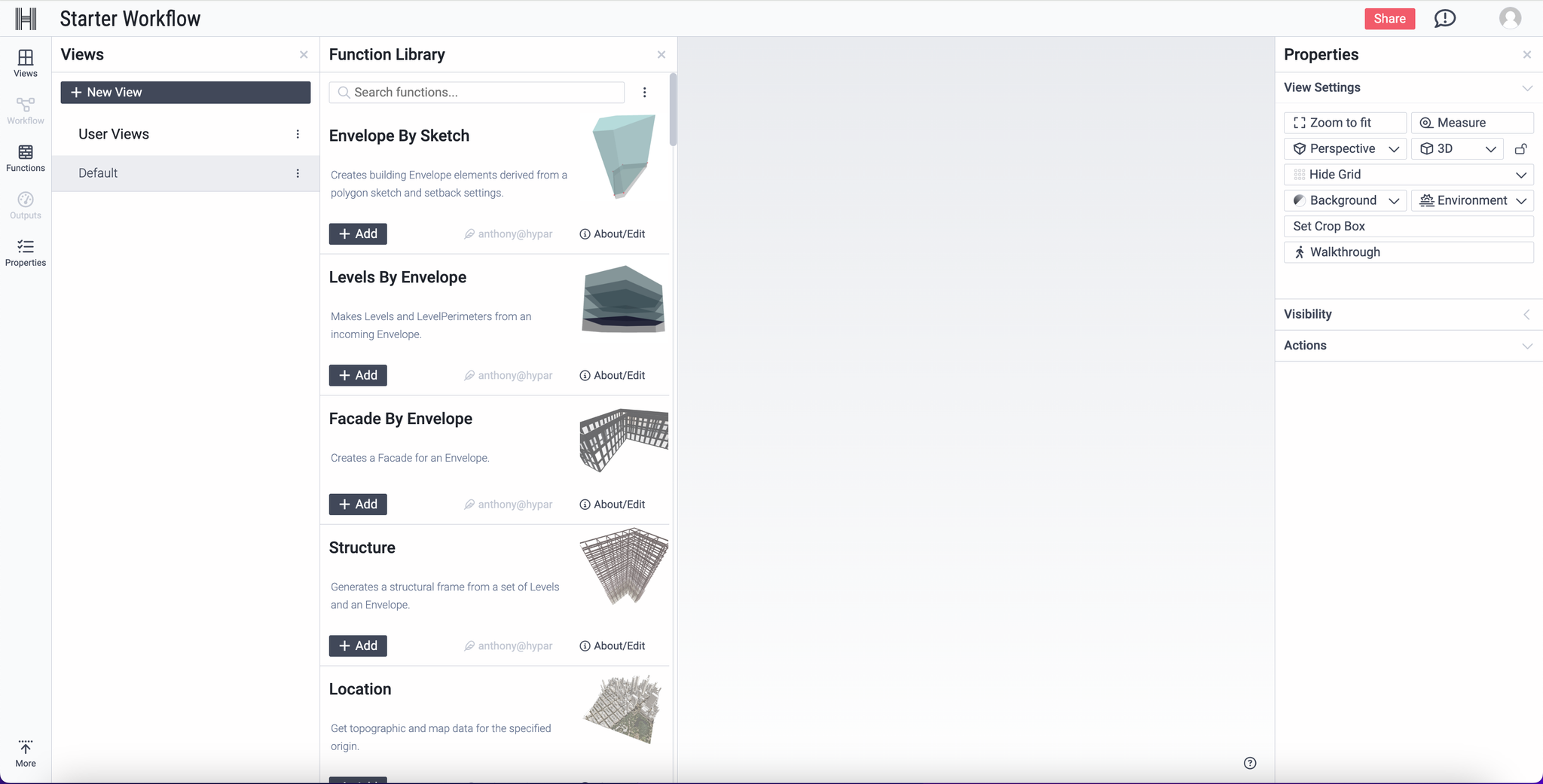

• Create a new workflow by clicking New Workflow and selecting New Blank Workflow. Give your Workflow a name by clicking it. You'll then see this screen:

• In the Function Library panel, search for "Starter Function".

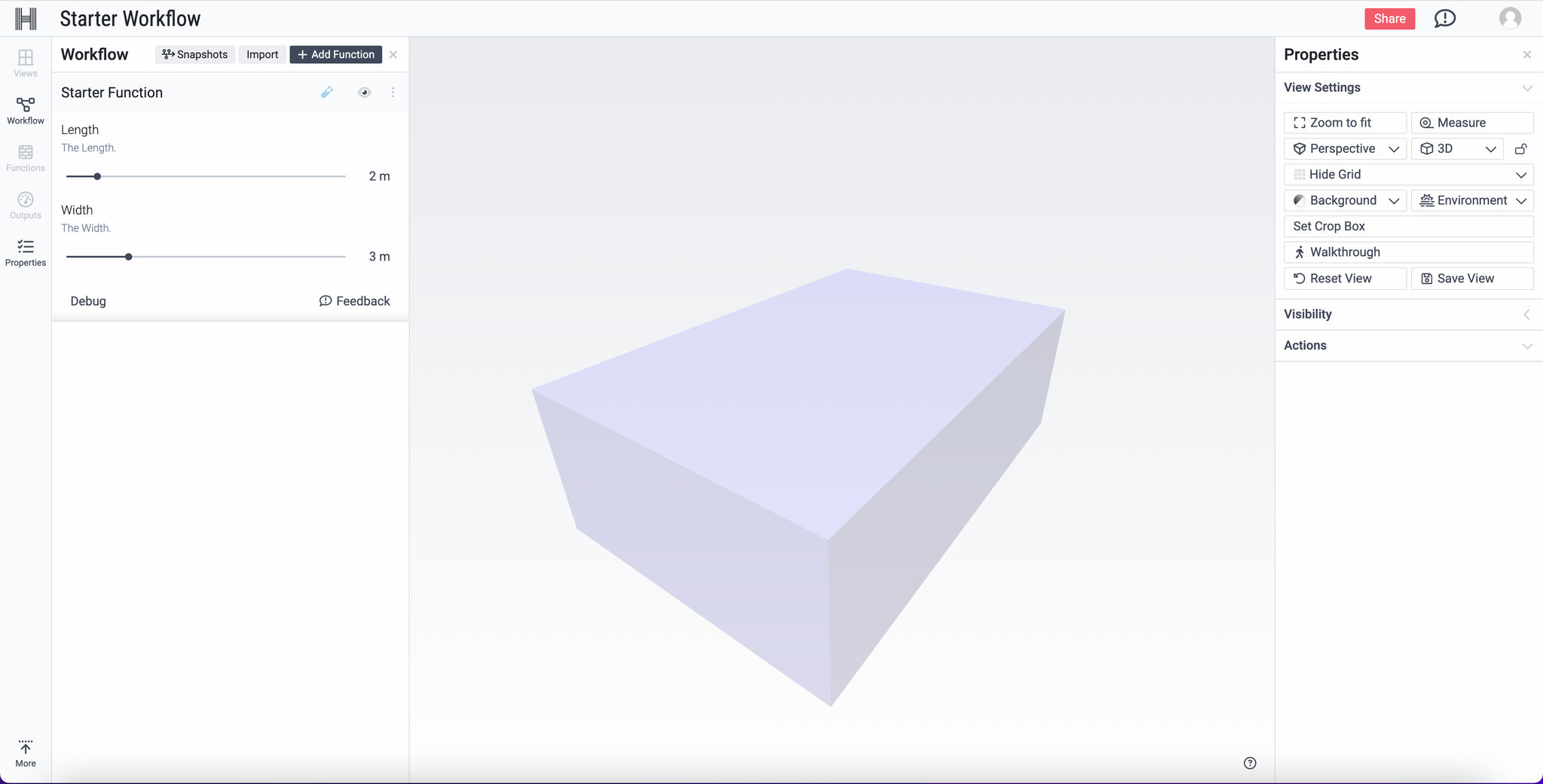

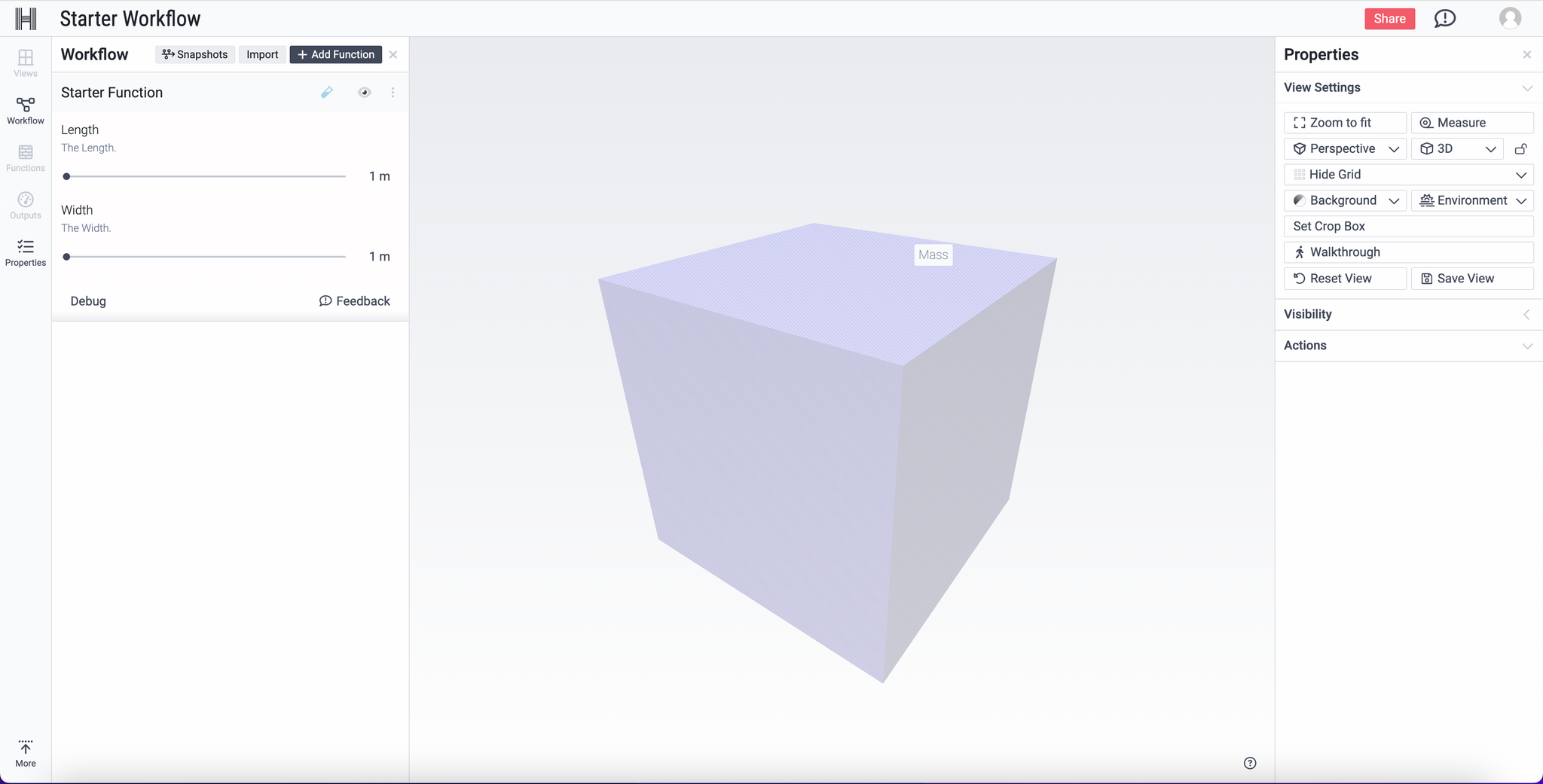

• Click + Add on Starter Function and hide the Function Library by clicking the x to close it. Your function will run automatically and you should see something like this:

You've just run a web application that you created!

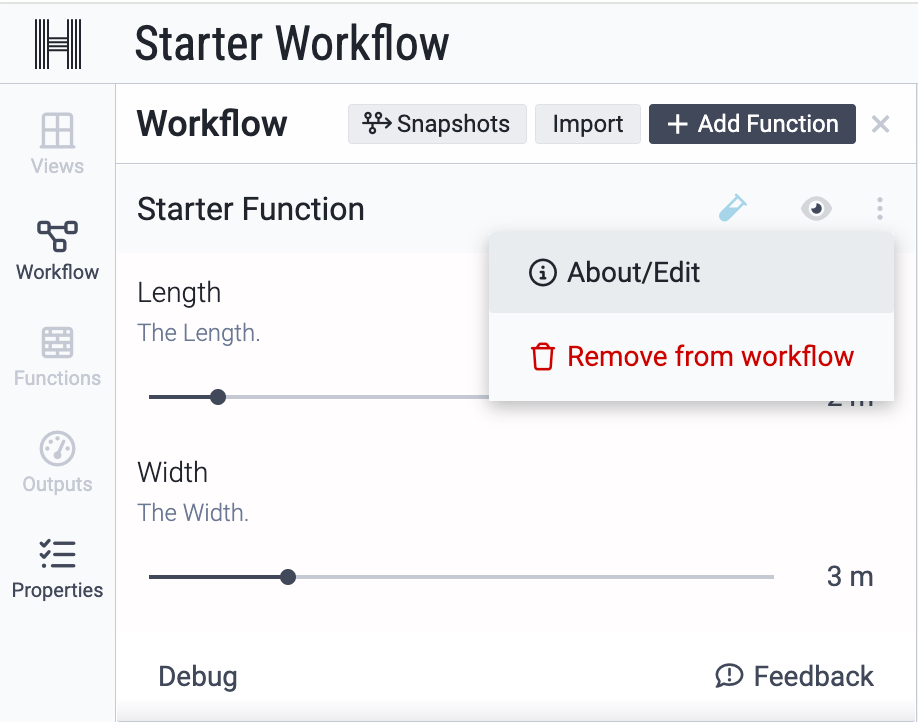

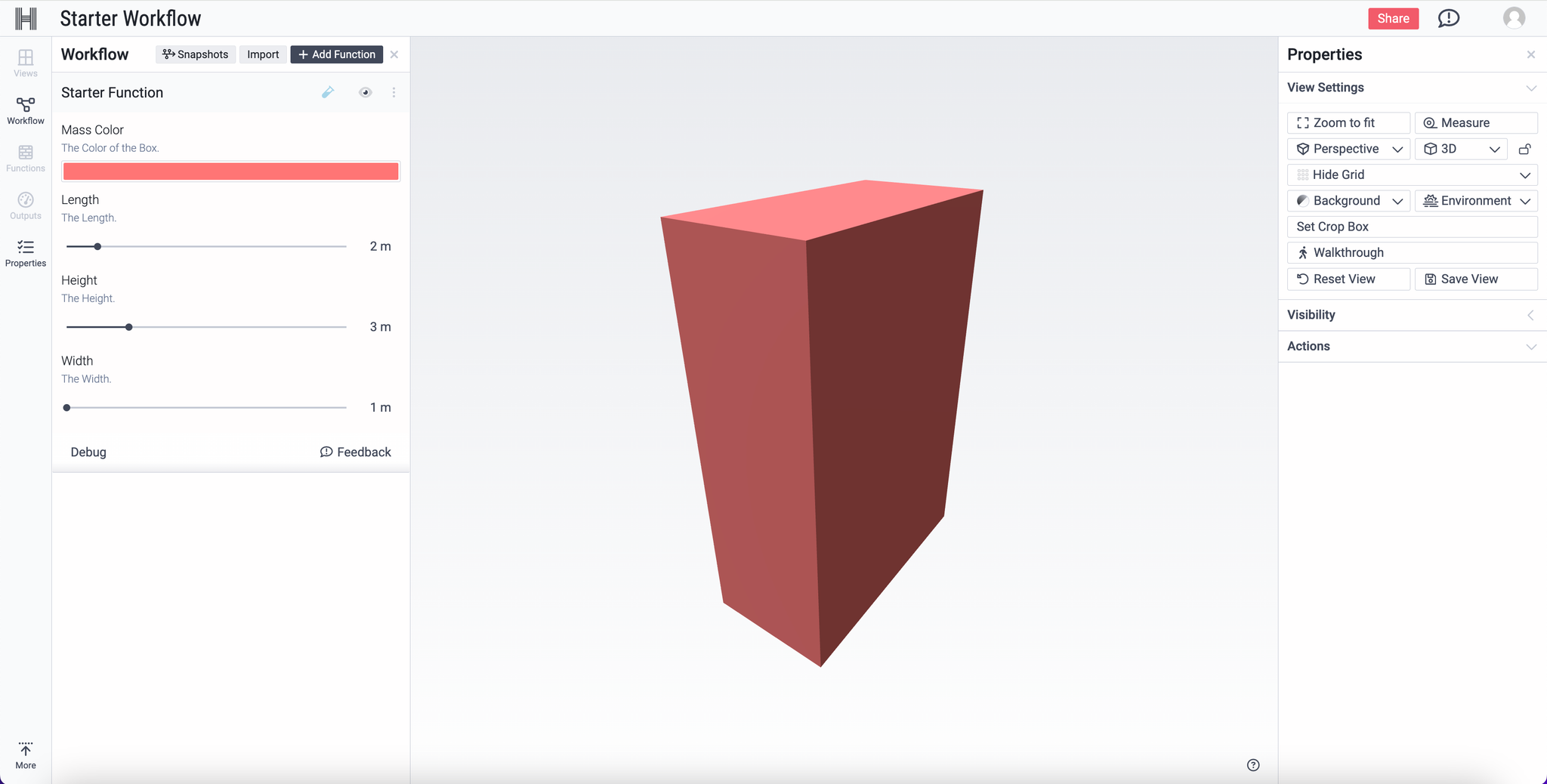

• Click in the 3D view to zoom, pan, and rotate the result. Now click on Starter Function to open up its inputs. Try adjusting the sliders to see how the mass changes shape.

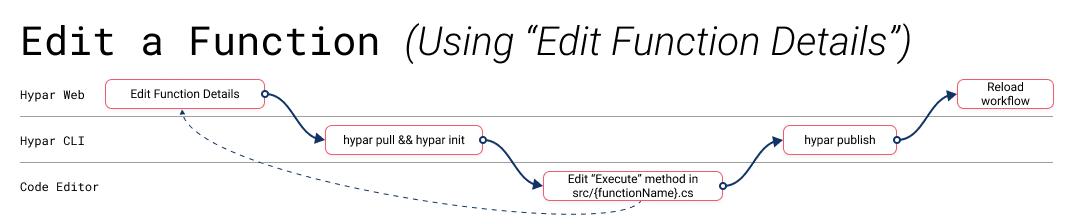

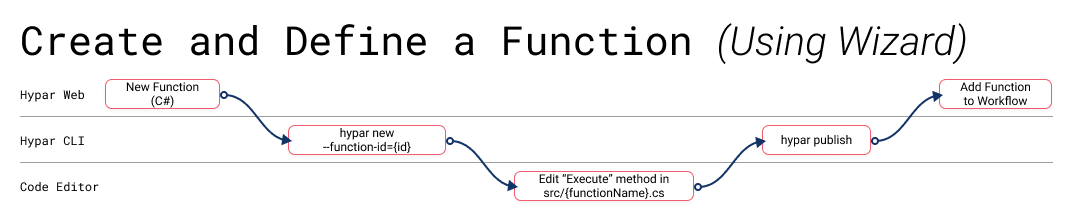

• This diagram summarizes the process we just went through to create, define, and publish our function:

bash
hypar pull && hypar init

c#
var output = new StarterFunctionOutputs(input.Width * input.Length * input.Height, input.Width * input.Length);

c#
var material = new Material("Box Color", input.MassColor);

c#
var mass = new Mass(rectangle, input.Height, material);

c#
public static StarterFunctionOutputs Execute(Dictionary<string, Model> inputModels, StarterFunctionInputs input)
{
	// create an output object
	var output = new StarterFunctionOutputs(input.Width * input.Length * input.Height, input.Width * input.Length);

	// create a rectangle
	var rectangle = Polygon.Rectangle(input.Width, input.Length);

	// create a new material
	var material = new Material("Box Color", input.MassColor);

	// create a mass from the rectangle
	var mass = new Mass(rectangle, input.Height, material);

	// add the mass to the output model
	  output.Model.AddElement(mass);
	  return output;
}

plain text
hypar publish

• Solve one small problem. Hypar Functions are easy to compose — no single function needs to do too much on its own.

• Repetition is your friend — build something that can tackle tasks that you hate doing manually, or take something you’ve built before and build it again on Hypar.

• Reach out to the community — our Discord channel has tons of community members ready to answer questions or share ideas.

• Have fun with it! What do you think would look cool? What would look silly? Build that!

• Hypar's YouTube channel has walkthrough videos and livestreams.

• The Elements GitHub repository and the tabs on top of this page have more information about Hypar's data model.

• Hypar's Building Blocks repo has the source code for many Hypar functions. Read those to see how they work, and feel free to branch or improve any of them.

• Use Function Staging to safely test out new updates to your function without breaking anything for existing users:
🧪Function Staging

• Learn about Overrides, to create richer, more intelligent interactions with your functions, in way that can balance automation with human design intervention:
🛠️Overrides

• Learn about Element Instances, to efficiently create multiple copies of a piece of geometry as output from your function:
👯‍♀️Element Instances

• Create detailed elements from GLTF models by utilizing Content Elements:
🪑Content Elements

• Create model views for your users with View Scopes:
🎥View Scopes

• Express relationships between elements:
↗️Element Relationships

• Use Queries to select elements and get data:
👀Queries

• Create custom model exporters to download different file types from a Hypar workflow:
Custom Exporters
