Often, elements in a model will have natural relationships to one another. For example, a level has a relationship to the building it belongs to, and a piece of furniture has a relationship to the room its in, or the floor it's on.
These relationships are expressed very simply in Hypar Elements: by storing a property containing the
Id of the related element. This can be added via AdditionalProperties but if it's a natural relationship for the element to have, it should probably be encoded in the element's schema. If an element specifies a relationship to another, that surfaces in the UI in the following ways.

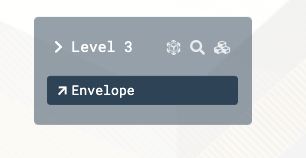

This
Level has a property called Envelope containing the ID of an envelope produced by another function:
Clicking that button will select the envelope in question.
Relationships are implicitly bi-directional — if element A has a relationship to B, B doesn't need to specify its own separate relationship to A. Selecting B will show the relationship back to A automatically. For instance, four
LevelVolume elements have a relationship to the currently selected Envelope:

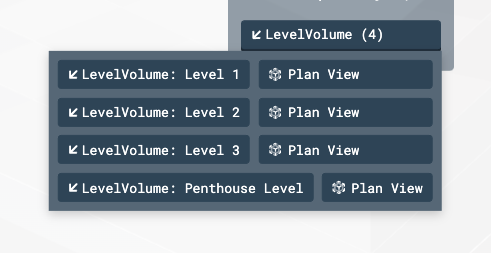

Clicking this button reveals a menu showing these related elements and any associated View Scopes they may have:
Relationships also show up in Elements Tables, in the Outputs panel or added to the workspace as Widgets. Clicking a relationship selects the element in the 3D workspace, as well as in any open tables displaying that element.
Adding relationships to elements you create
Adding a relationship is as simple as adding a property with another element's
Id. c#Envelope envelope = inputModels["Envelope"].AllElementsOfType<Envelope>().First(); LevelVolume level = new LevelVolume(); level.AdditionalProperties["Envelope"] = envelope.Id;
See Building Blocks for more examples of element relationships.
Annotated Relationships with $hyparRelationship
